Couplings type K
Single and straight joint
Single
male
UN
| Size | Code |
|---|---|
| 1/2” | 03.12.07.0.100 |
| 3/4” | 03.34.08.0.100 |
| 1” | 03.10.09.0.100 |
| M20x1,5 | 03.20.10.0.100 |
| Size | G [“] | L [mm] | H [mm] |
|---|---|---|---|
| 1/2″ | 1/2″ | 57-64 | 18,5-25,5 |
| 3/4″ | 3/4″ | 56,5-67,5 | 18-29 |
| 1” | 1” | 57-68 | 23-34 |
| M20x1,5 | M20x1,5 | 57-64 | 18,5-25,5 |
Single
male
| Size | Code |
|---|---|
| 1/2” | 03.12.07.1.100 |
| 3/4” | 03.34.08.1.100 |
| 1” | 03.10.09.1.100 |
| M20x1,5 | 03.20.10.1.100 |
| Size | G [“] | L [mm] | H [mm] |
|---|---|---|---|
| 1/2″ | 1/2″ | 88-95 | 18,5-25,5 |
| 3/4″ | 3/4″ | 87,5-98,5 | 18-29 |
| 1” | 1” | 88-98 | 23-34 |
| M20x1,5 | M20x1,5 | 88-95 | 18,5-25,5 |
Straight
| Size | Code |
|---|---|
| 1/2” | 03.12.07.1.100 |
| 3/4” | 03.34.08.1.100 |
| 1” | 03.10.09.1.100 |
| M20x1,5 | 03.20.10.1.100 |
| Size | G [“] | L [mm] | H [mm] |
|---|---|---|---|
| 1/2″ | 1/2″ | 88-95 | 18,5-25,5 |
| 3/4″ | 3/4″ | 87,5-98,5 | 18-29 |
| 1” | 1” | 88-98 | 23-34 |
| M20x1,5 | M20x1,5 | 88-95 | 18,5-25,5 |
Angle joint
Type K
| Size | Code |
|---|---|
| 1/2” | 03.12.14.0.100 |
| 3/4” | 03.34.15.0.100 |
| 1” | 03.10.16.0.100 |
| M20x1,5 | 03.20.17.0.100 |
| Size | G [“] | L [mm] | H [mm] | A [mm] |
|---|---|---|---|---|
| 1/2″ | 1/2″ | 50 | 18,5-25,5 | 70 |
| 3/4″ | 3/4″ | 50 | 18-29 | 70 |
| 1” | 1” | 50 | 23-34 | 70 |
| M20x1,5 | M20x1,5 | 50 | 18,5-25,5 | 70 |
Rossete: Brass
Surface treatment: chrome plated
Type K
SN
male thread
| Size | Code |
|---|---|
| 1/2” | 03.12.19.0.100 |
| 3/4” | 03.34.19.0.100 |
| 1” | 03.10.19.0.100 |
| M20x1,5 | 03.20.19.0.100 |
| Size | G [“] | L [mm] | H [mm] | A [mm] |
|---|---|---|---|---|
| 1/2″ | 1/2″ | 75 | 18,5-25,5 | 70 |
| 3/4″ | 3/4″ | 75 | 18-29 | 70 |
| 1” | 1” | 75 | 23-34 | 70 |
| M20x1,5 | M20x1,5 | 75 | 18,5-25,5 | 70 |

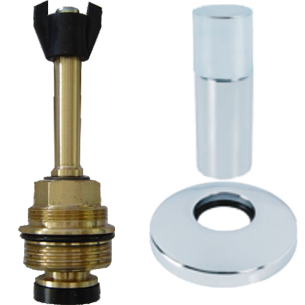

Extension part: Cap: Brass
Rossete: ABS
Surface treatment: chrome plated
Type K
UN
female thread
| Size | Code |
|---|---|
| 1/2” | 03.12.19.1.000 |
| 3/4” | 03.34.19.1.000 |
| 1” | 03.10.19.1.000 |
| M20x1,5 | 03.20.19.1.000 |
| Size | G [“] | L [mm] | H [mm] | A [mm] |
|---|---|---|---|---|
| 1/2″ | 1/2″ | 73 | 18,5-25,5 | 70 |
| 3/4″ | 3/4″ | 73 | 18-29 | 70 |
| 1” | 1” | 73 | 23-34 | 70 |
| M20x1,5 | M20x1,5 | 73 | 18,5-25,5 | 70 |
Extension part: Cap: Brass
Rossete: ABS
Surface treatment: chrome plated
T - joint
Type K
| Size | Code |
|---|---|
| 1/2” | 03.12.14.0.100 |
| 3/4” | 03.34.15.0.100 |
| 1” | 03.10.16.0.100 |
| M20x1,5 | 03.20.17.0.100 |
| Size | G [“] | L [mm] | H [mm] | A [mm] |
|---|---|---|---|---|
| 1/2″ | 1/2″ | 50 | 18,5-25,5 | 70 |
| 3/4″ | 3/4″ | 50 | 18-29 | 70 |
| 1” | 1” | 50 | 23-34 | 70 |
| M20x1,5 | M20x1,5 | 50 | 18,5-25,5 | 70 |
Rossete: Brass
Surface treatment: chrome plated
Type K
SN
male thread
| Size | Code |
|---|---|
| 1/2” | 03.12.19.0.100 |
| 3/4” | 03.34.19.0.100 |
| 1” | 03.10.19.0.100 |
| M20x1,5 | 03.20.19.0.100 |
| Size | G [“] | L [mm] | H [mm] | A [mm] |
|---|---|---|---|---|
| 1/2″ | 1/2″ | 75 | 18,5-25,5 | 70 |
| 3/4″ | 3/4″ | 75 | 18-29 | 70 |
| 1” | 1” | 75 | 23-34 | 70 |
| M20x1,5 | M20x1,5 | 75 | 18,5-25,5 | 70 |
Extension part: Cap: Brass
Rossete: ABS
Surface treatment: chrome plated
Type K
UN
female thread
| Size | Code |
|---|---|
| 1/2” | 03.12.19.1.000 |
| 3/4” | 03.34.19.1.000 |
| 1” | 03.10.19.1.000 |
| M20x1,5 | 03.20.19.1.000 |
| Size | G [“] | L [mm] | H [mm] | A [mm] |
|---|---|---|---|---|
| 1/2″ | 1/2″ | 73 | 18,5-25,5 | 70 |
| 3/4″ | 3/4″ | 73 | 18-29 | 70 |
| 1” | 1” | 73 | 23-34 | 70 |
| M20x1,5 | M20x1,5 | 73 | 18,5-25,5 | 70 |
Extension part: Cap: Brass
Rossete: ABS
Surface treatment: chrome plated
Assembling instructions
Cut the pipe straight across by using appropriate tool and remove all burrs and bevels from the outer edge of the pipe. Pun the nut and compression ring on the outside of the pipe. Place O-ring on original position of the socket. Push the pipe to the socket until it is totally againts the bottom of socket, taking care that O-ring remain in the original position. Tight the nut by hand as mush as possible. The front part of elastic ring will bend symmetrically onto the pipe, and the teeth will penatrate into the wall of the pipe, providing the strong connection and preventing the pull-ot of the pipe.
Use the spanner for additional straining, accordnig to the number of turns show below:
For articles dimensions from Ø20 – Ø32 (1/2″ – 1″) – min 1 – max 1,5 turns
For articles dimensions from Ø40 – Ø63 (1 1/4″ – 2″) – min 1,5 – max 2 turns
Technical specifications
-
Assembly instructions: PE pipe connectors, compression type
-
Application: For PE pipes according to EN ISO 12201
-
Pressure rating: PN25
-
Materials: CW 617N EN 12165
-
Dimensions: EN 1254-3
-
Threads: ISO 228 (EN 1254-4)
-
Dezincification resistance: EN ISO 6509
-
Stress corrosion: ISO 6957
-
Tightness in positive pressure: EN 715
-
Tightness on bending: EN 713
-
Pull-out: EN 712
